Vacuum chambers are critical components in advanced industries like semiconductor manufacturing, aerospace, particle physics, and advanced optics. Meeting stringent requirements ensures process integrity and reliability. Here are the core specifications:

1. Ultra-High Vacuum (UHV) Levels

• Typical Range: 10^-7 to 10^-12 mbar
• Applications: Particle accelerators, surface science, fusion research.
• Requires specialized pumps (e.g., ion pumps, cryopumps) and bake-out protocols.

2. Material Quality

• Low Outgassing: Stainless steel (316L/304L) with electropolishing.
• Non-Magnetic Options: Austenitic steel for electron microscopy.
• Corrosion Resistance: Alumina coatings for plasma-rich environments (e.g., semiconductor etching).

3. Hermetic Sealing & Leak Rates

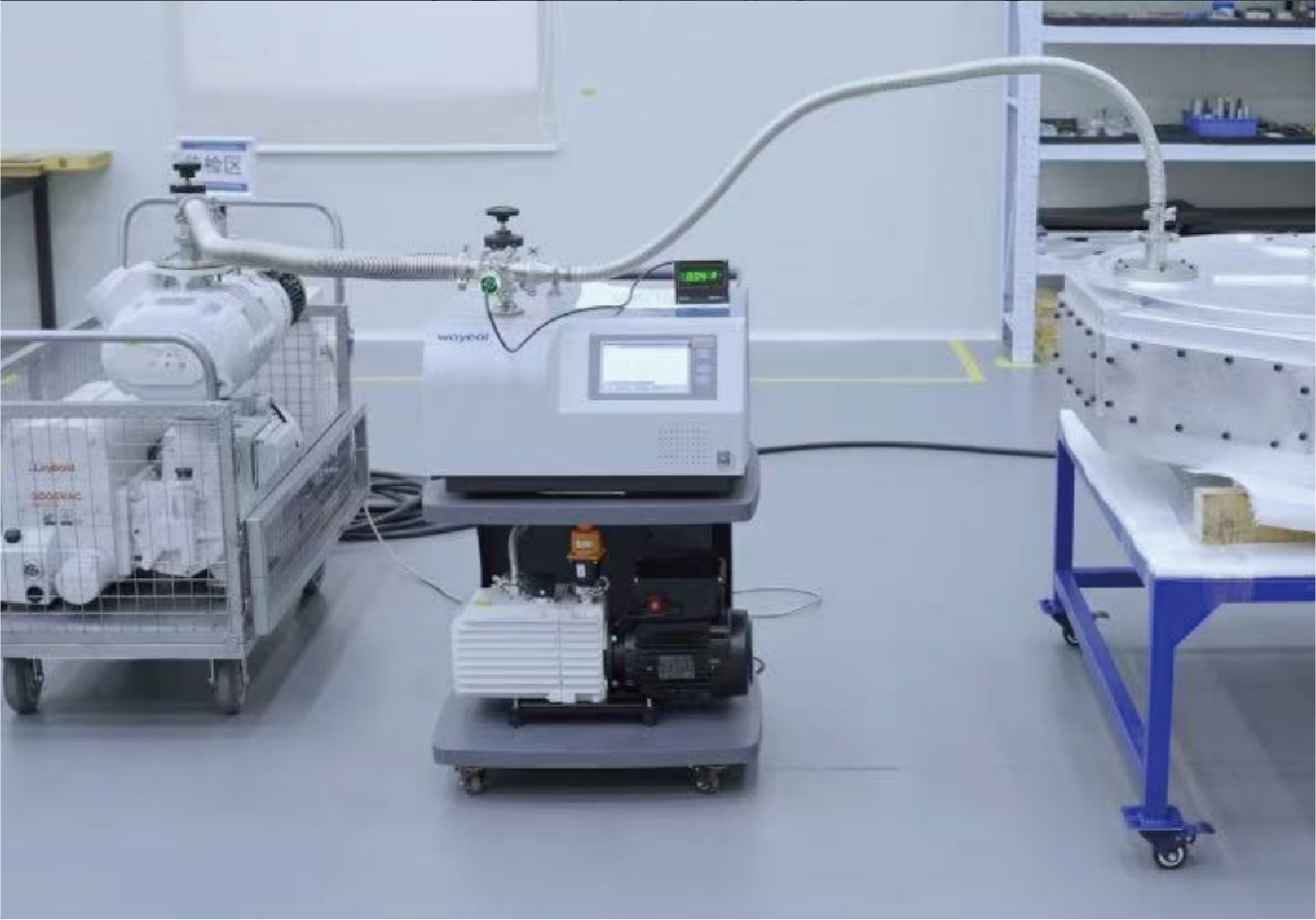

• Acceptable Leak Rate: <10^-9 mbar·L/s (helium leak tested).
• Sealing Methods: Metal seals (copper/gold O-rings), ConFlat flanges.

4. Thermal Management

• Bake-Out Capability: Sustained heating (150–250°C) for degassing.
• Cold Traps/Cryoshields: For capturing contaminants (liquid N₂-cooled).

5. Precision Engineering

• Flange Compatibility: ISO-KF, CF, or NW standards for modular integration.
• Feedthroughs: Electrical/fluid feedthroughs with zero virtual leaks.

6. Contamination Control

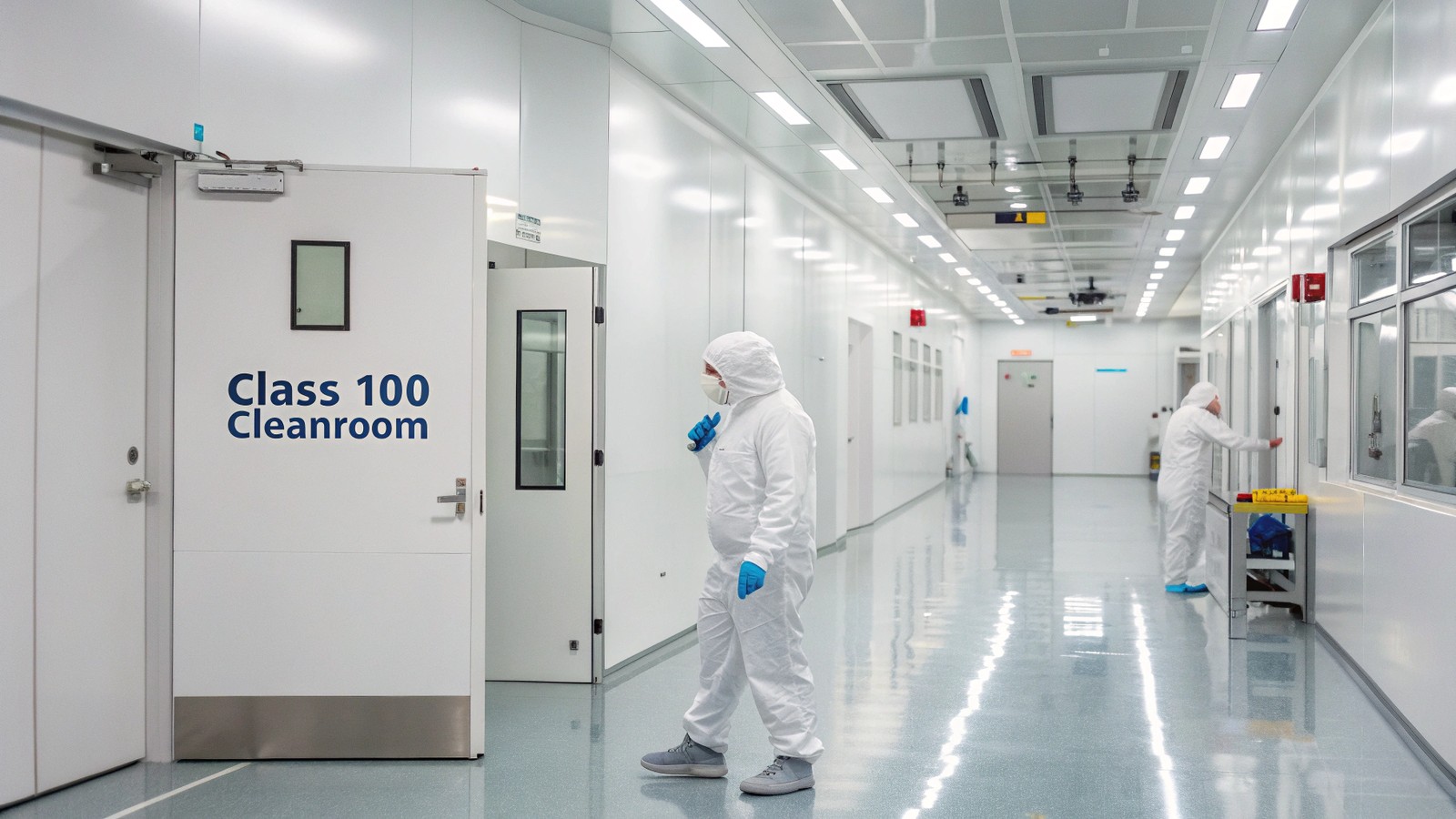

• Particulate Limits: Class 10/100 cleanroom assembly.
• In-Situ Cleaning: Plasma/UV cleaning options for optics applications.

7. Dynamic Insensitivity

• Vibration Resistance: <1 µm deflection in microscopy setups.
• EMI Shielding: For quantum computing/sensitive sensors.

8. Long-Term Stability

• Material Fatigue Resistance: Endurance under cyclic pressure/temperature.
• Decade-Long Lifespan: Minimal maintenance for fusion research chambers.

Industry Spotlight

In EUV Lithography (Semiconductors), chambers demand:

• XHV (<10^-12 mbar) to minimize light scattering.
• Mirror-smooth surfaces (Ra <0.1 µm) to prevent particle traps.

Choosing the right vacuum chamber is foundational for pushing the boundaries of innovation. As technologies advance, expect tighter specs and smarter monitoring!
