Why Are Custom Welding Chambers Critical for High-Tech Applications?
Custom welding chambers form the foundation of semiconductor manufacturing, aerospace research, and particle physics experiments. Unlike standard chambers, these precision-engineered solutions must achieve:
- Ultra-high vacuum (UHV) environments below 10⁻⁹ Torr for chip fabrication
- Zero-contamination welds with leak rates <5×10⁻¹⁰ mbar·L/s
- Custom geometries for specialized equipment integration
A chamber (minimum size 6.5×4.2×1.8 meters) uses proprietary welding technology. The leader of our welding team has supplied welding technology and vacuum products to Applied Materials for 27 years.
Stainless Steel and Aluminum - What Are the Different Application Requirements of Different Materials?
| Factor | 316L Stainless Steel | 6061 Aluminum |
|---|---|---|
| Pressure Range | 10⁻¹² Torr (UHV) | 10⁻⁸ Torr (HV) |
| Weight | Heavy (Density 7.93 g/cm³) | Light (2.70g/cm³, 60% lighter) |
| Common Welding Method | EBW/TIG | TIG/Friction Stir Welding (FSW) |
Applicable Scenarios (Semiconductor Industry Examples)
-
316L Stainless Steel:
✓ Etching/deposition equipment chamber in wafer manufacturing
✓ Ultra-high vacuum chamber of ion implanter
✓ Occasions needing to withstand high-temperature (>300℃) processes -
6061 Aluminum:
✓ Mobile semiconductor testing equipment vacuum chamber
✓ Clean room rapid maintenance system
✓ Weight-sensitive lithography machine auxiliary chamber
Technical Highlights
- Ultra-pure environment requirements:
316L stainless steel performs more stably in UHV environments below 10⁻⁹ Torr, making it ideal for advanced process (below 7nm) semiconductor equipment. - Influence of material properties:
- Special attention needed for aluminum alloy surface treatment (electrochemical polishing recommended) to reduce outgassing rate.
- Stainless steel is more suitable for corrosive process gas environments (e.g., C4F8 etching gas).
Latest Industry Trends
- Growing application of composite aluminum chambers in third-generation semiconductor (GaN/SiC) epitaxial equipment.
- Stainless steel remains the mainstream choice for logic chip manufacturing equipment.
What Makes a Truly Reliable High Vacuum Welding Chamber?
Three Non-Negotiable Features:
- Metal Seals
- Replace elastomers that outgas at >10⁻⁷ Torr
- Gold-plated copper gaskets for UHV systems
- Surface Perfection
- Electropolishing reduces outgassing by 5×
- 16-μinch finish on sealing surfaces
- Welding Validation

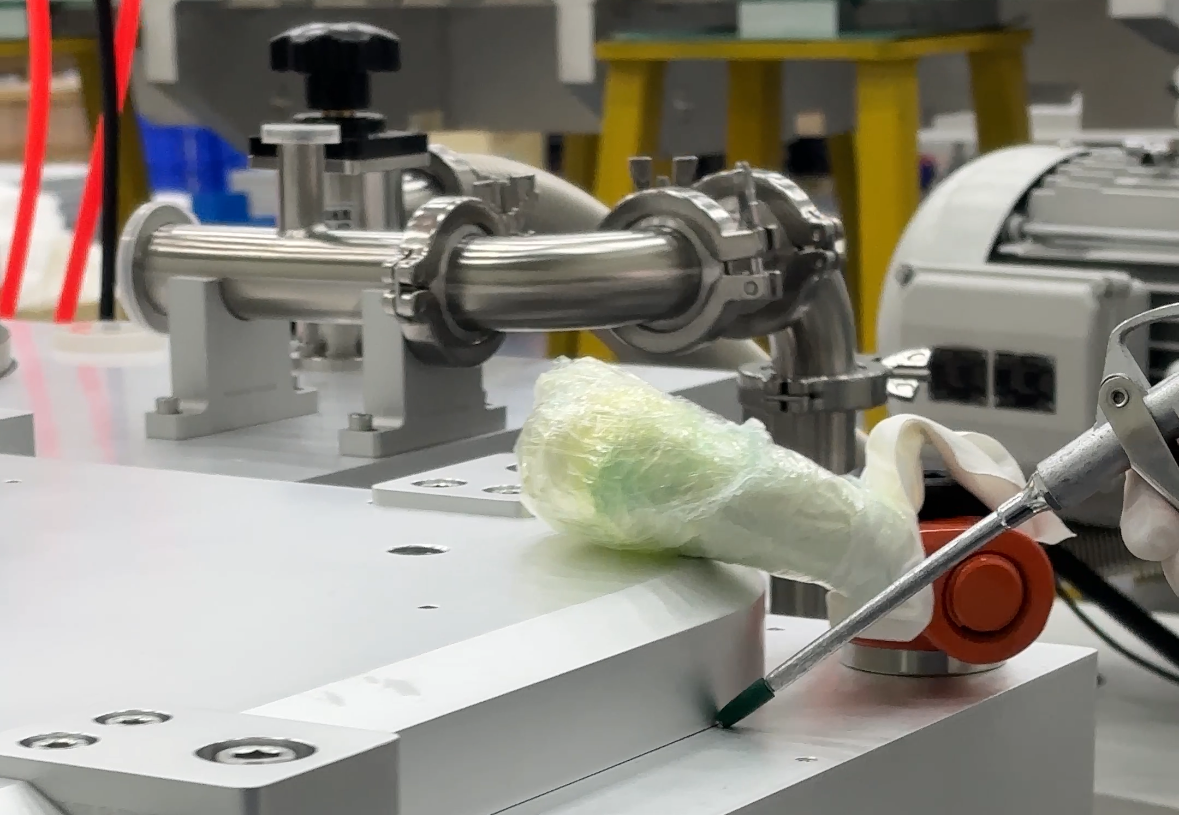

- 100% helium leak testing
- Residual gas analysis for contamination checks
How Do We Ensure Large Vacuum Welding Chambers Maintain Precision?

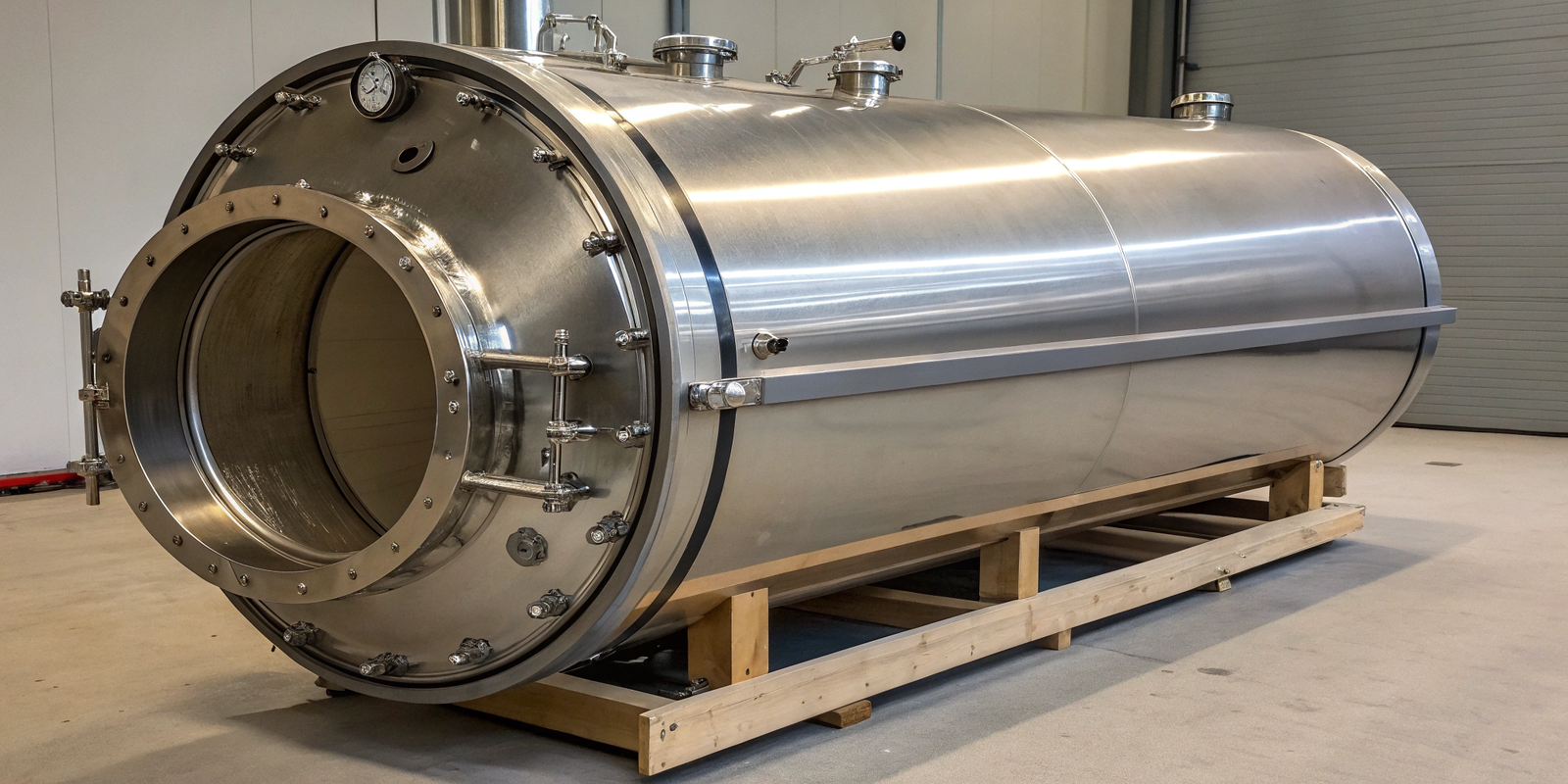

Our jumbo chambers (6500×4200×1800mm) undergo:
- Stress-relief annealing to prevent warping
- Laser-aligned machining post-welding
- In-situ deformation monitoring during fabrication
What Post-Processing Guarantees Chamber Performance?
Our Class 10,000 cleanroom delivers:
- Vapor degreasing → Removes >99.9% hydrocarbons
- Ultrasonic cleaning → Eliminates sub-micron particles
- Bake-out protocols → Reduces H₂ outgassing by 90%
